Diagnostic Phantoms

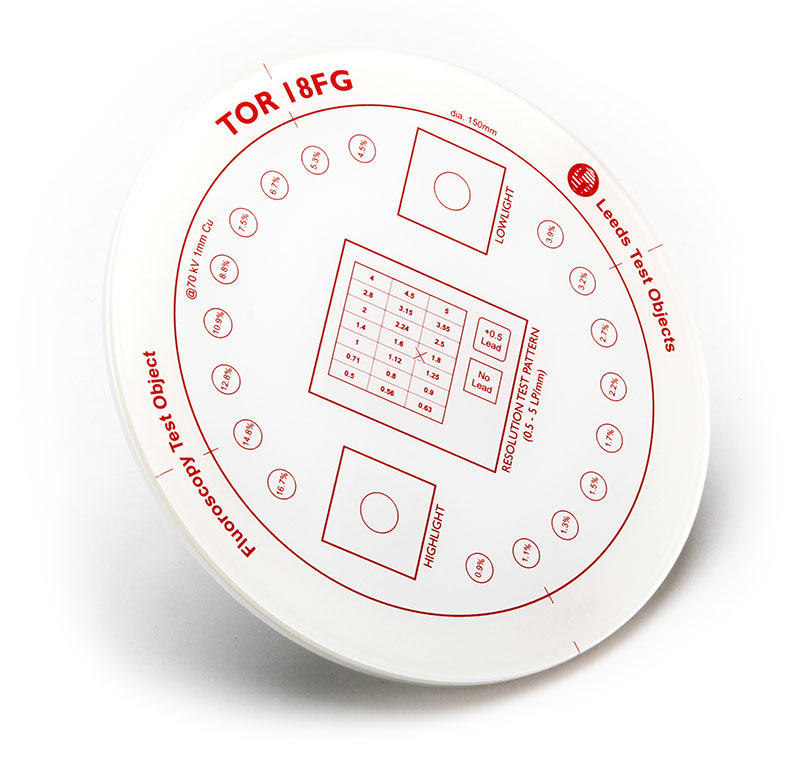

TOR 18FG

TOR 18FG fluoroscopy phantom is a routine test object designed to be used quickly and easily on a regular basis (e.g. weekly/monthly) to provide an ongoing check of imaging performance, particularly those aspects which are most liable to deterioration. After an initial grey-scale check, image quality is measured simply by counting the number of details detected and the number of bar-patterns resolved in the image. An ongoing record of these numbers will reveal any trend towards deterioration in imaging performance.

Fluoro 4 & Fluoro 4-L

Leeds Test Objects′ FLUORO-4 phantom is designed to be used to check the image quality performance of digital and conventional fluoroscopy x-ray systems. These tests should be carried out at acceptance to establish a baseline, and on a routine basis, keeping an on-going record of the test results, which will indicate any deterioration in performance.

TO MTF

An MTF Edge test device comprising an angulation wheel and a Tungsten edge.

TOR CDR

TOR CDR radiography phantom is a routine test object designed to be used quickly and easily on a regular basis (e.g. weekly or monthly) to provide an ongoing check of imaging performance, particularly those aspects which are most liable to deterioration. After an initial grey-scale check, image quality is measured simply by counting the number of details detected and the number of bar-patterns resolved in the image. An ongoing record of these numbers will reveal any trend towards deterioration in imaging performance.

TOR MAM

TOR MAM mammography phantom is designed to be used quickly and easily on a routine basis to provide an ongoing check of imaging performance, particularly those aspects which are most liable to deterioration. An ongoing record of these numbers will reveal any trend towards deterioration in imaging performance.

PMMA/Cu Attenuator

A bonded PMMA and Copper attenuator for use with PIX 13 (310 x 310mm square) or Fluoro-4 (200 x 200mm square), consisting of 30mm PMMA and 1mm Cu (99.9% purity).
